We manufacture Worm Reduction Horizontal, Over Driven, Vertical Upward & Vertical Downward type of gearbox. To transmit minimum 0.5 HP and maximum 60 HP with selection of correct sizes. Sizes available in reduction ratio at 5:1, 10:1, 15:1,20:1, 25:1, 30:1, 40:1, 50:1, 60:1, 70:1 and also in higher reduction ratio such as 100:1 to 4900:1 for double reduction gear unit. We have shaft mounting gearbox, adaptable type & even tailor made also available to meet your requirement. All the units offer continues load carrying capacity, silent operation and complete reliability
Aluminium NMRV Gearbox
We Manufacture best quality aluminum gearbox within sensible prices. These are mostly found its application in various industries across the various sectors like Ceramic, Textile, Packing machinery, Conveyor etc. They are well known for their wear and tear resistance as these are packed using high grade packing materials. Our Aluminum NMRV Gearbox range is:- Box 40 to 110 available in all ratio.
Helical Gearbox
We Manufacture Single Stage, Two Stage, Three Stage Gearbox which are manufactured using superior raw material which ensures durability and better performance with high efficiency. We provide Helical Gearbox with the nominal ratio of 6.3 to 20 in power ratings.
SMSR Gearbox
The SMSR Gear Boxes that we supply are primarily used with the Single shaft mounted machines. These products are simpler to build and as such find wide applications within the industry. Our flagship range of SMSR Gear Boxes is appreciated for quality, ruggedness and long functional life. SMSR Gearbox are totally enclosed and consist of hardened & precision machined. Available in whole range with all ratio.
Geared Motors
Geared Motors used in Gear units are totally enclosed, fan cooled, squirrel cage induction motors suitable for operation on 415V, 50 HZ, 3 phase, AC Supply. Our range of geared motor is 0.16 HP to 30 HP in general with 0.1 to 700 RPM.

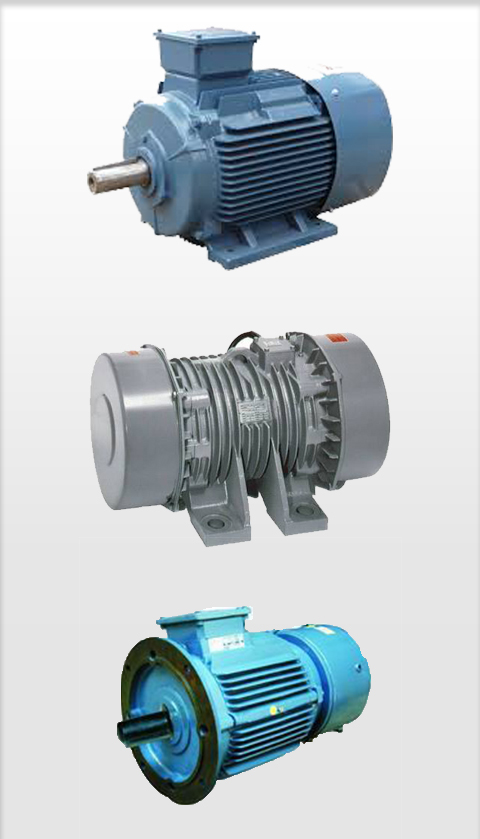

Electric Motors
Induction Motor
Range: 0.10 H.P. to 75 H.P. (0.075 K.W. to 55 K.W.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12 Pole
Mounting: Foot - Flange - Face
Standards: Performance conforms to be: 325 and dimensions according to IS 1231 & IS 2223
Frame: Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.
Ratings: All Standard Three phase Motors are continuous rated to comply with performance standards.
Voltage and Frequency: Supply volts 415 +- 5% 3 phase 50 Hz. +- 3% (on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also)
Vibratory Motor
Concept: The external vibrator is a three-phase or single phase synchronous motor that has eccentric weights (unbalance weight) mounted at the ends of the Rotor shaft. The rotating shaft causes centrifugal forces, which can be adjusted by moving the weights it create a vibration.
Range: 0.25 H.P. to 10 H.P. in 2, 4, 6 & 8 poles 3 phase supply volts 415 +- 5% 50 Hz. +- 5%
On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
0.25 H.P. TO 2 H.P. in 2,4 pole 1phase supply volts 215 +-5% 50Hz. +-5% (on customer request we are also able supply motor in 110 volts on 60 Hz) Centrifugal force kg.: 250 to 6500
Brake Motor
Concept: Brake Motor is combination of three phase or single phase Squirrel Cage Induction Motor with Electro-Magnetic Disc Brake (A.C.) when power is switched off with ordinary motor, the rotating part will stopped after some time but if brake motor is used rotating mass will stop instantaneously. All Brakes are mounted at non-driving end of motor, braking disc is mounted directly on motor shaft. Brakes are directly acting, no lever or links are required.
Range: Three phase: - 0.25 H.P. to 30 H.P. ( 0.18 to 22 Kw.) In 3000, 1500, 1000 & 750 Rpm with A.C. & D.C. brake frame 63 to180L on customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60.
Pulley
We have all types of Pulley Manufactured by Industrial experts with best quality, long durability and reliability. Types of Pulley Available are C.I. “V” Belt Pulley, Solid Pulley, Plate Pulley, Splite Pulley, Step Pulley, and many more.
Sprocket
We are offering a wide array of Chain Sprocket for our clients. The Sprocket offered by us is designed using superior quality raw material and advanced technology in adherence with industry norms. Our provided sprocket is available in various sizes and specifications as per the demands of our patrons.
Coupling
Our product range includes a wide range of Industrial Coupling such as HRC Coupling, Aluminum Star Coupling, Nylon Gear Coupling, M.S. Flexible Gear Coupling, C.I. Brake Drum Coupling, Pin Bush Coupling, C.I. Tyre Coupling, Star Coupling, RRL Coupling, RRS Coupling, SW Coupling and many more items.
